We are resourceful at
- Industrial Design, Engineering Services, Manufacturing & Assembly
- Prototyping & Pilot Production Services
- Electronic Engineering Service
- Control Panels Customized Controls
- Cable Harness
Industrial Design, Engineering Services, Manufacturing & Assembly (Special Purpose Machine Design and Build)
CUSTOM SOLUTIONS FROM SUBCOMPONENTS TO TURNKEY SYSTEMS
- DTPL designers can work for you or with you to develop and manufacture expertly designed machines, handling equipment, and turnkey systems
- Each step of the process is done in-house, allowing DTPL to assure successful completion of every element of the project
Services include:
Performance Testing
Reverse Engineering
Product Development
CE Certification (On Specific Request)
Assembly
Inspection
Manufacturing
Private Labelling
Process Automation
Research and Development
Common Industries Served:
Windmill Blades
Optical Lens
Aerospace
Automotive
Machine Tools
Construction Equipment

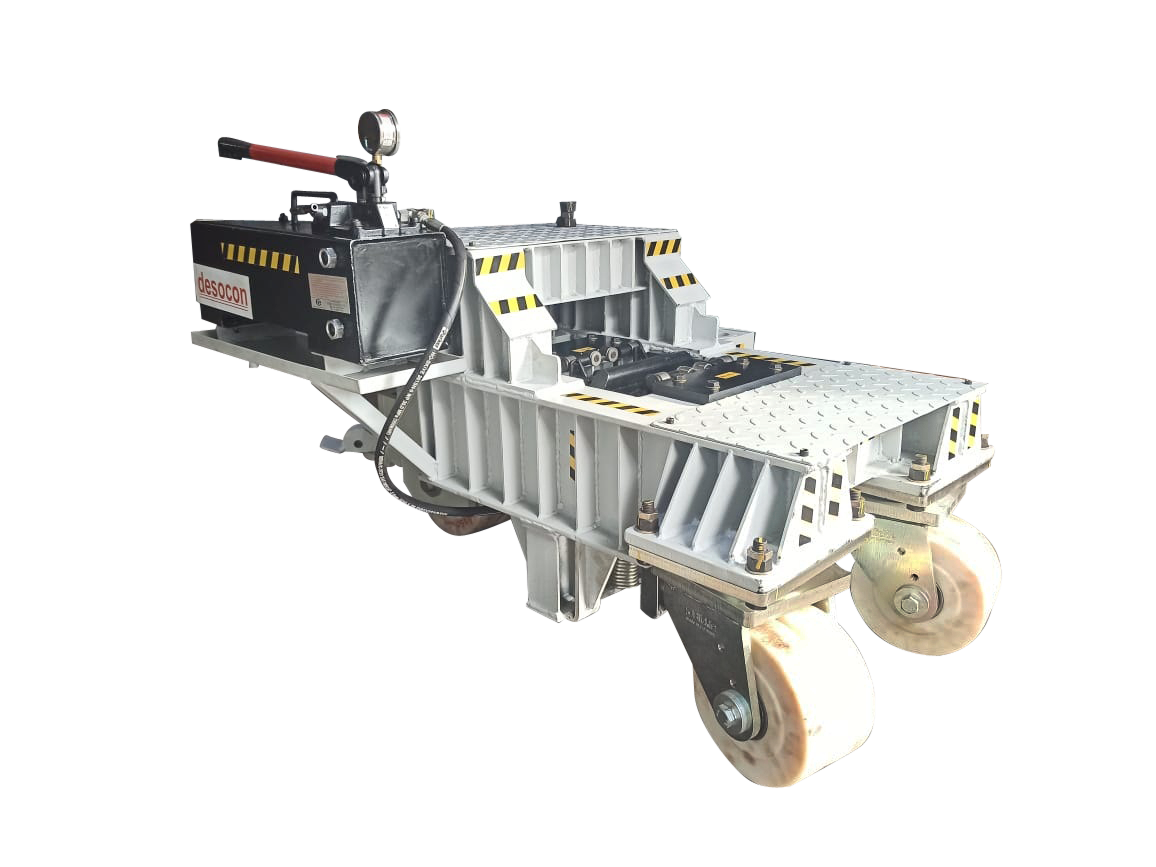

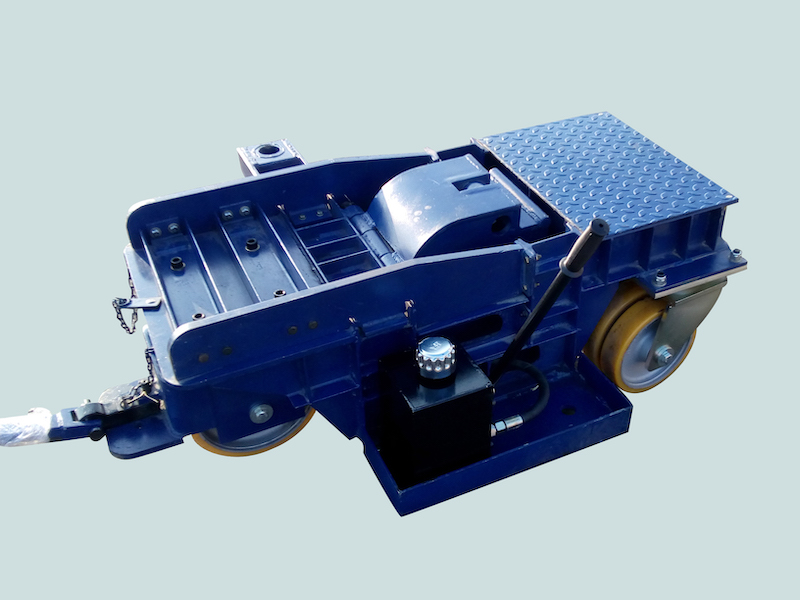

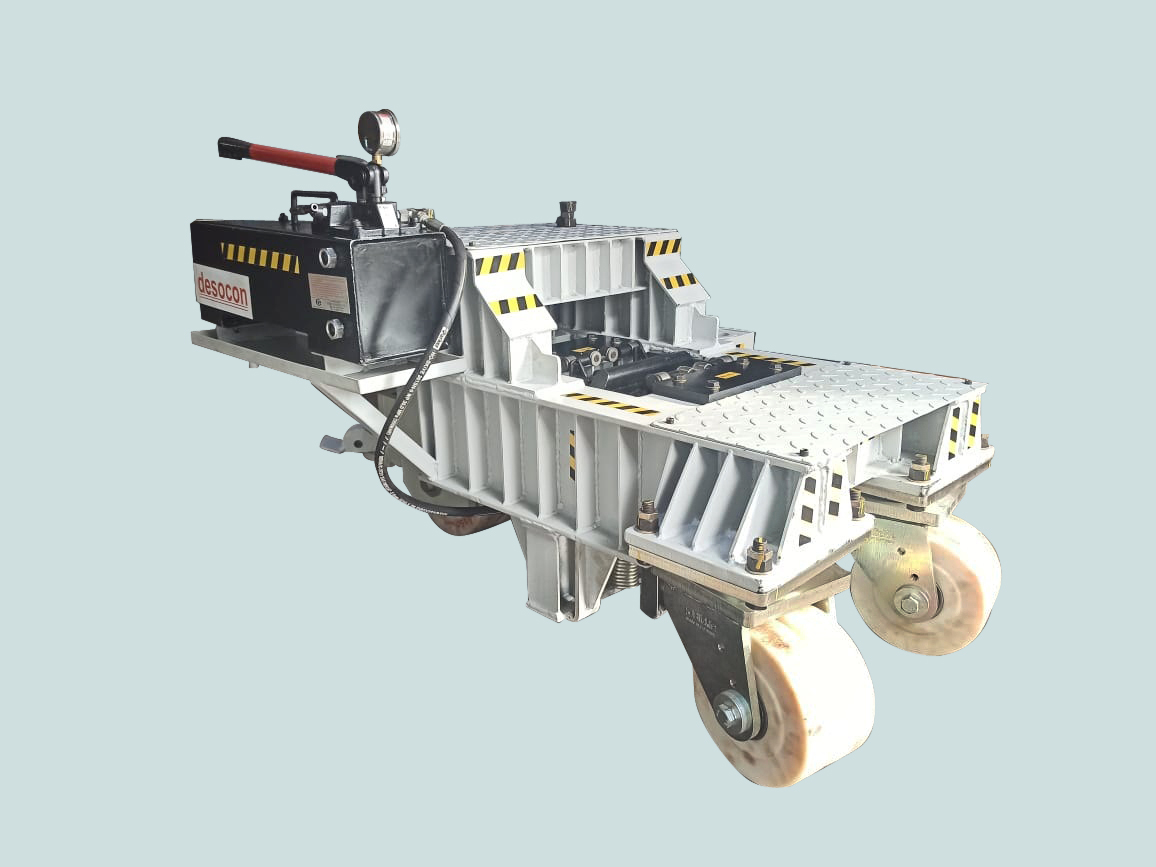

Material Lifting and Movement Trolley Jack
>> Specification
•5 to 15 Ton Lifting Capacity.
•Hydraulic cylinder manual operated(single acting).
•Pedestrain Operated.
•Lifting Range from 480mm to 600mm.
•Swivel Castor.
•Ground clearance 80mm.

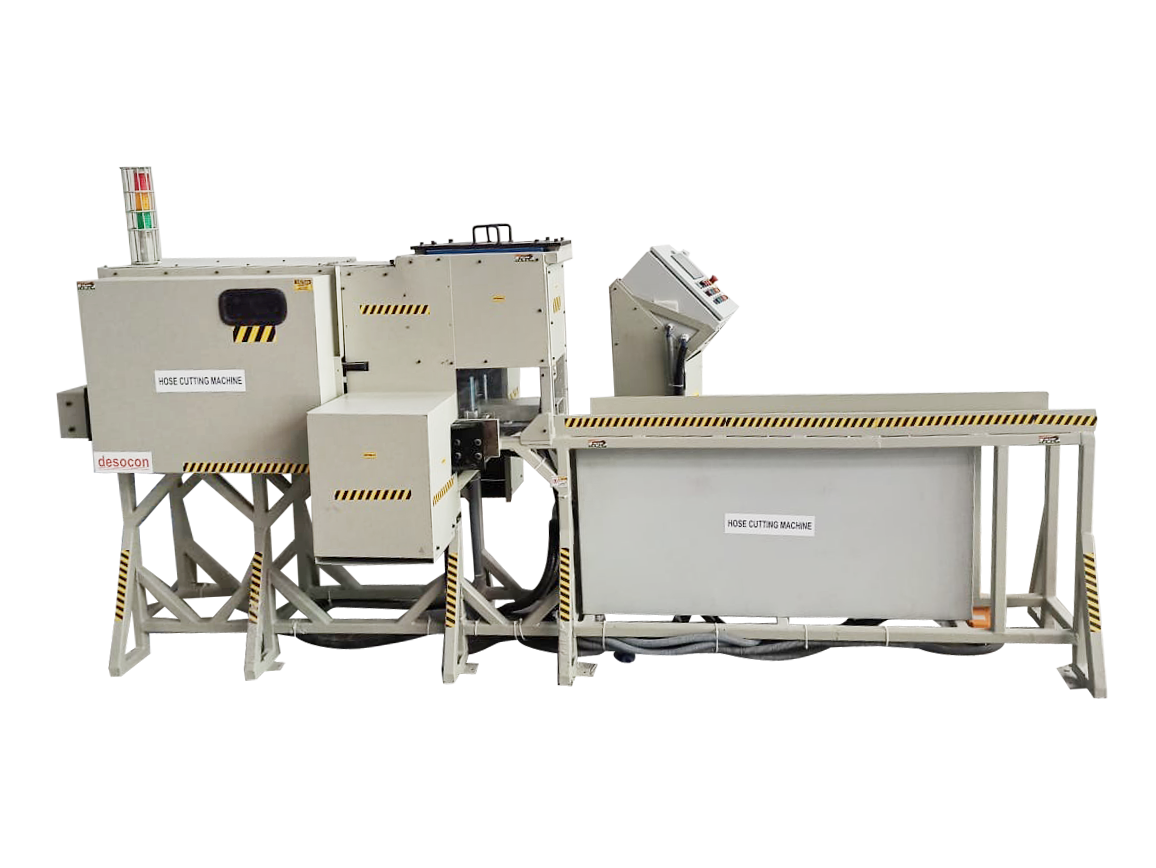

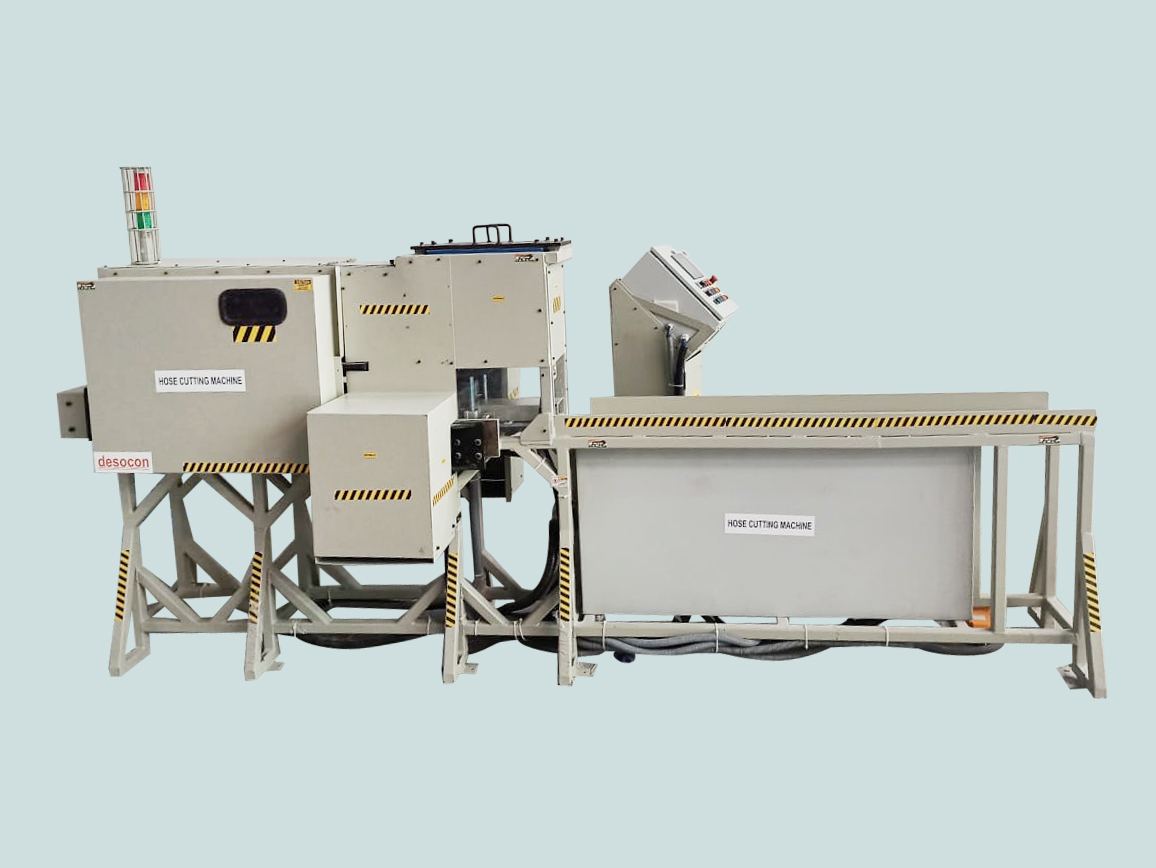

Hose Cutting Machine
>> Specification
•Automatically cuts PVC Braided hose up to 40mm dia.
•PLC controlled with 7'' HMI.
•Automatic Labelling.
•Two set of guillotine to cut two braided hoses parallelly.
•Automatic feeding of the hoses from the hose reels mounted on stands.
•Incremental rotary type Encoder.
•Modern Interlocking Mechanisms along with other safety features.

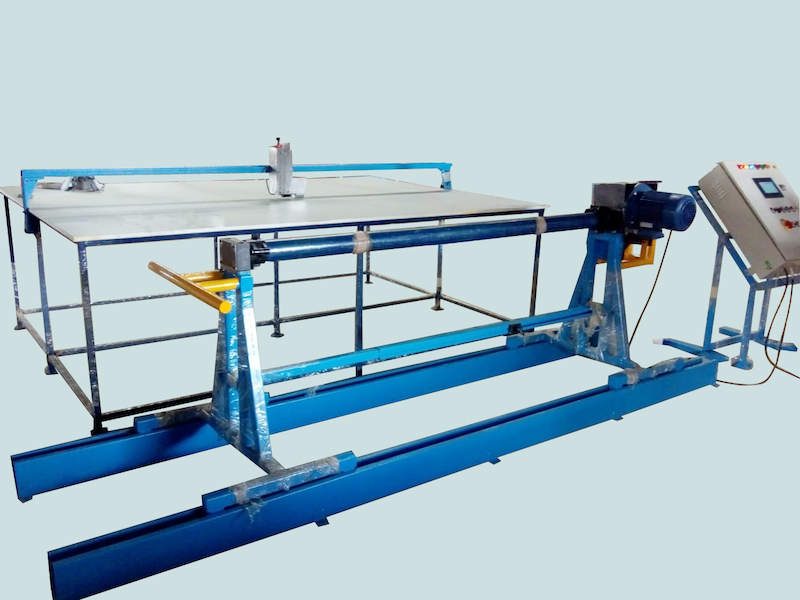

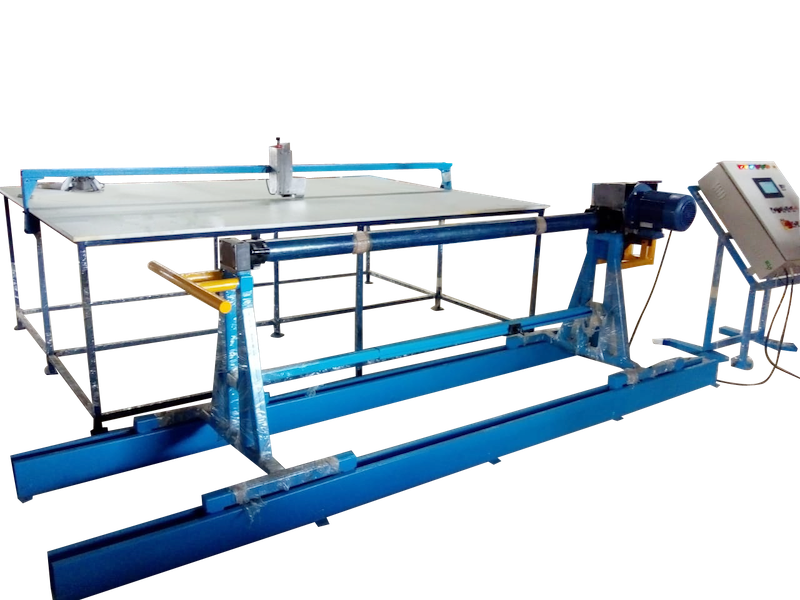

Rolling Machine/ Fabric Cutting Machine
>> Specification
•Automatic cutting of knit, woven and industrial fabrics.
•PLC controlled with 7'' HMI.
•Automatic feeding of the fabric from bobbin mounted on the stand.
•Manual feeding.
•Automatic stop.
•Encoder type – Incremental.
•Modern Interlocking Mechanisms along with other safety features.

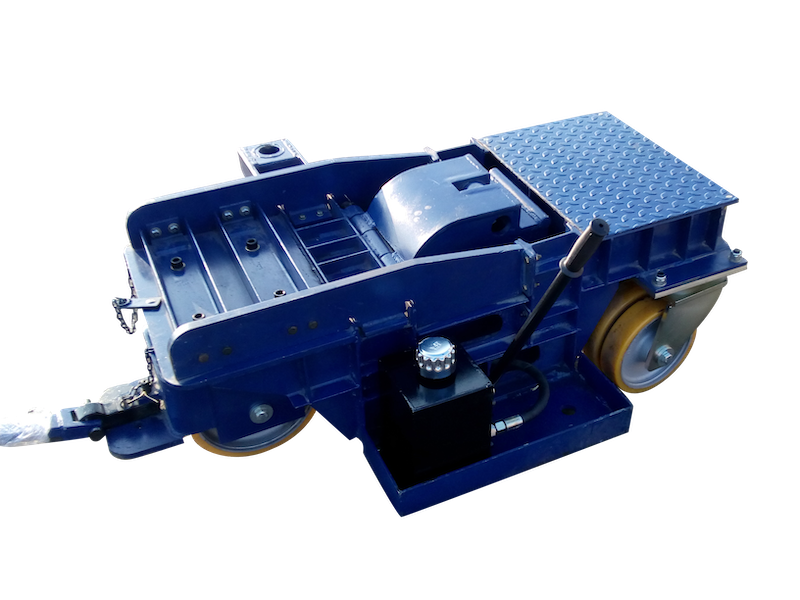

Material Lifting and Movement Trolley Jack
>> Specification
•5 to 10 Ton Lifting Capacity.
•Hydraulic cylinder manually operated(single acting).
•Pedestrian operated.
•Lifting Range from 480mm 600mm.
•Swivel Castor.
•Ground clearance 80mm.
Motorized Linear Translation Stage
>> Specification
•Lifting Capacity 30 kgs.
•Electrically controlled with limit switches.
•Vertical positioning range from 1.80m to 3.5 mts.
•Horizontal positioning range 0.75m to 1.5 m.
•Max rotation 270 Degree.
•Maximum speed vertical/Horizontal 186.5 rpm.
•Counterweight provided for machine balance.
•CE Mark.

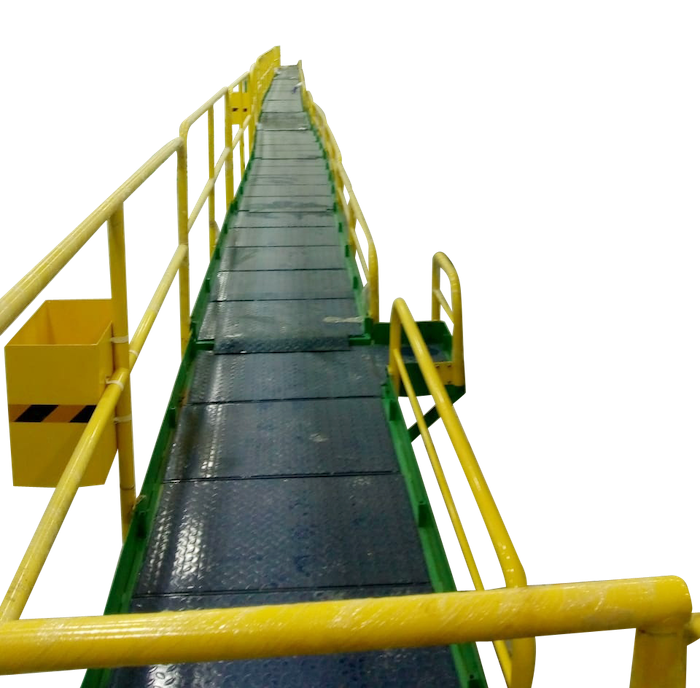

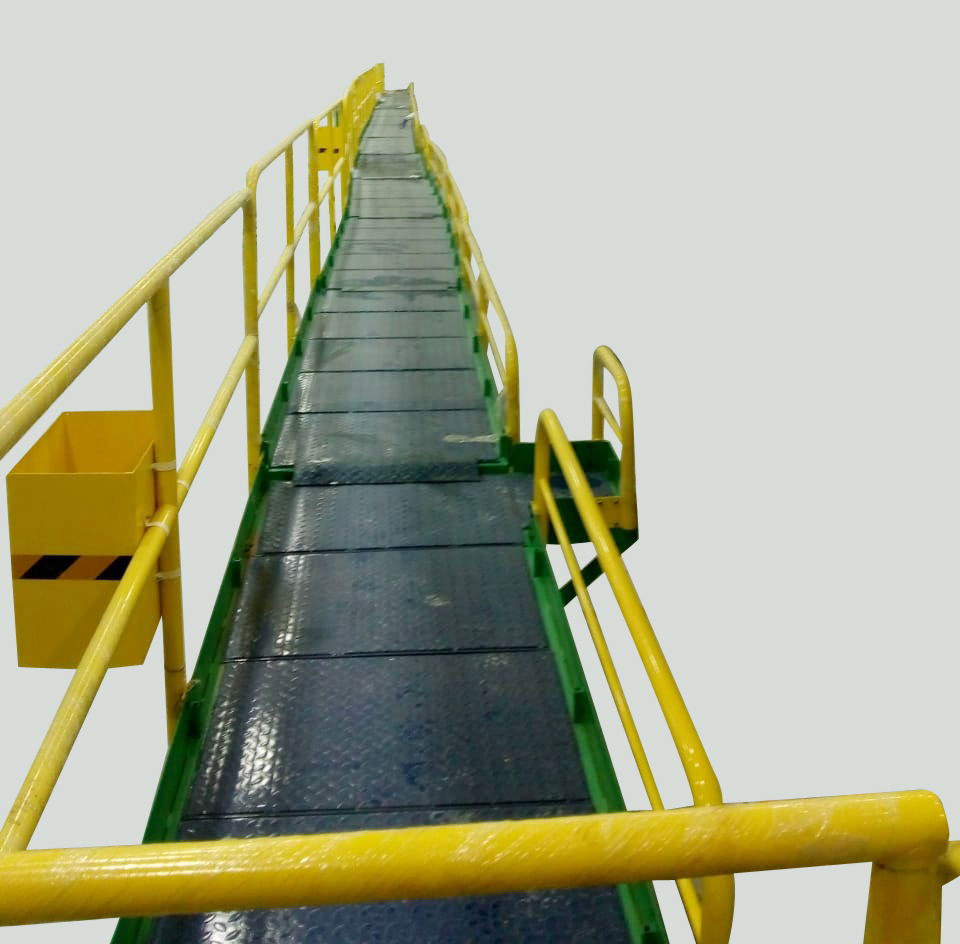

Industrial Access Catwalk
>> Specification
•Designed for Live Load of 250kg/sqm.
•Vertical maximum reach 0.9m to 1.2m.
•Horizontal maximum reach 70 m.
•Designed equivalent to the ISO Standard.
Prototyping & Pilot Production Services ........................................
CONTRACT MANUFACTURING & SUPPLY
DTPL’s in-house team in association with trusted vendors makes wide range of product prototypes through various stages
Appearance Model
Proof of Concept
Pilot Production
Matured Product
Alpha
Beta
Prototyping services include:

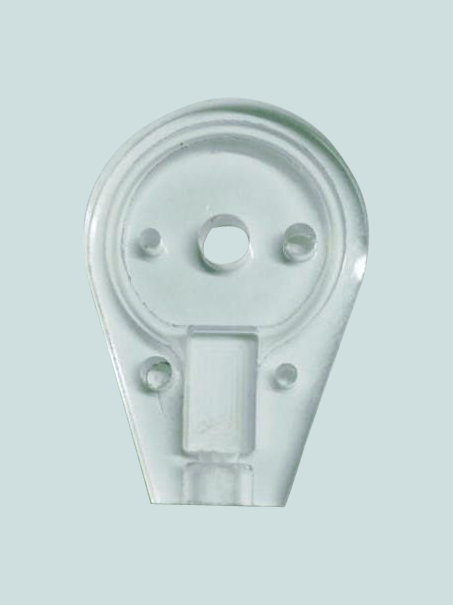

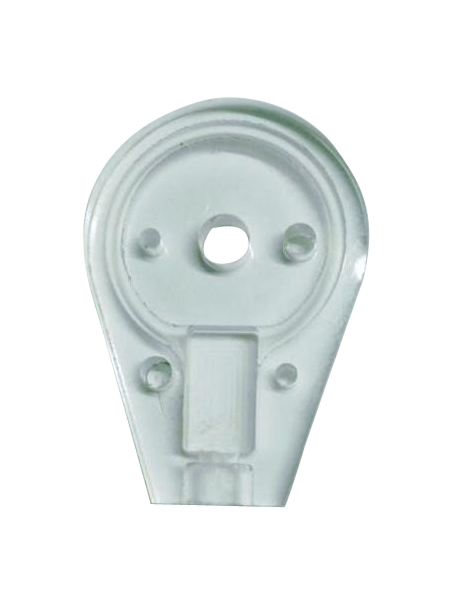

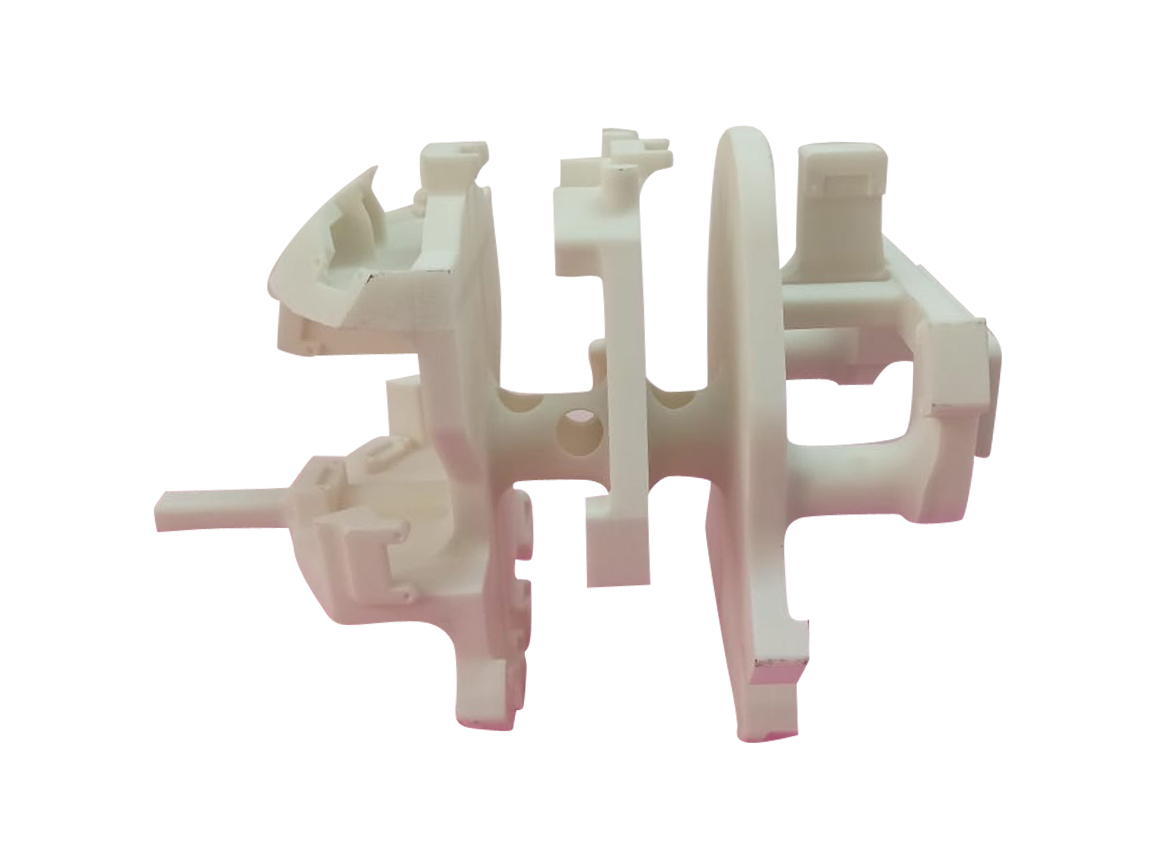

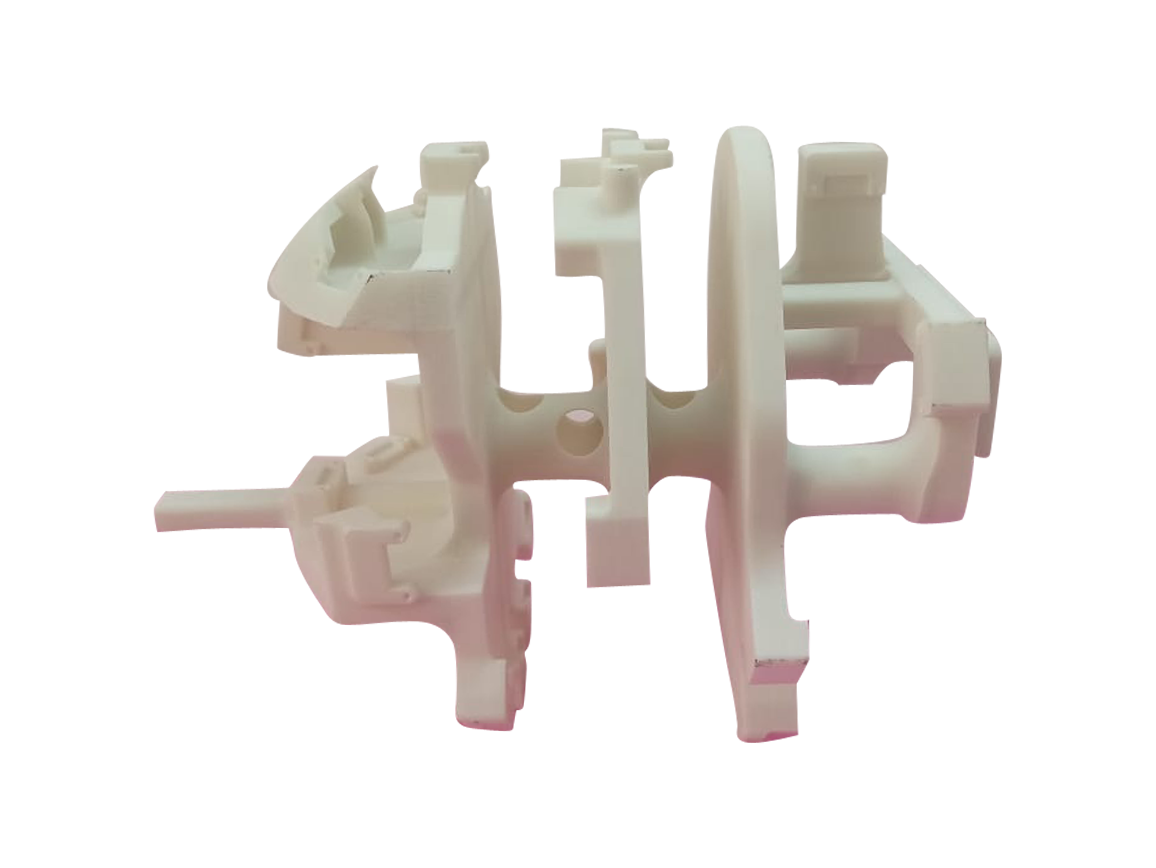

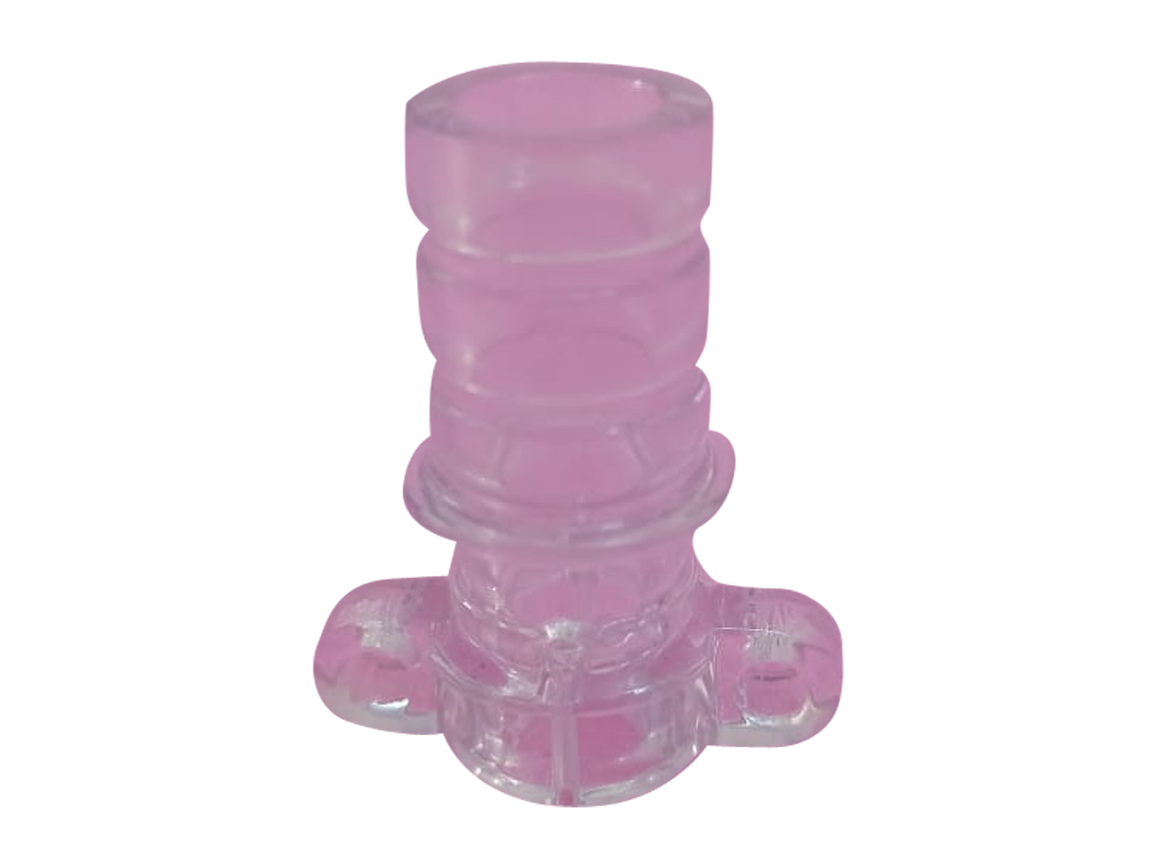

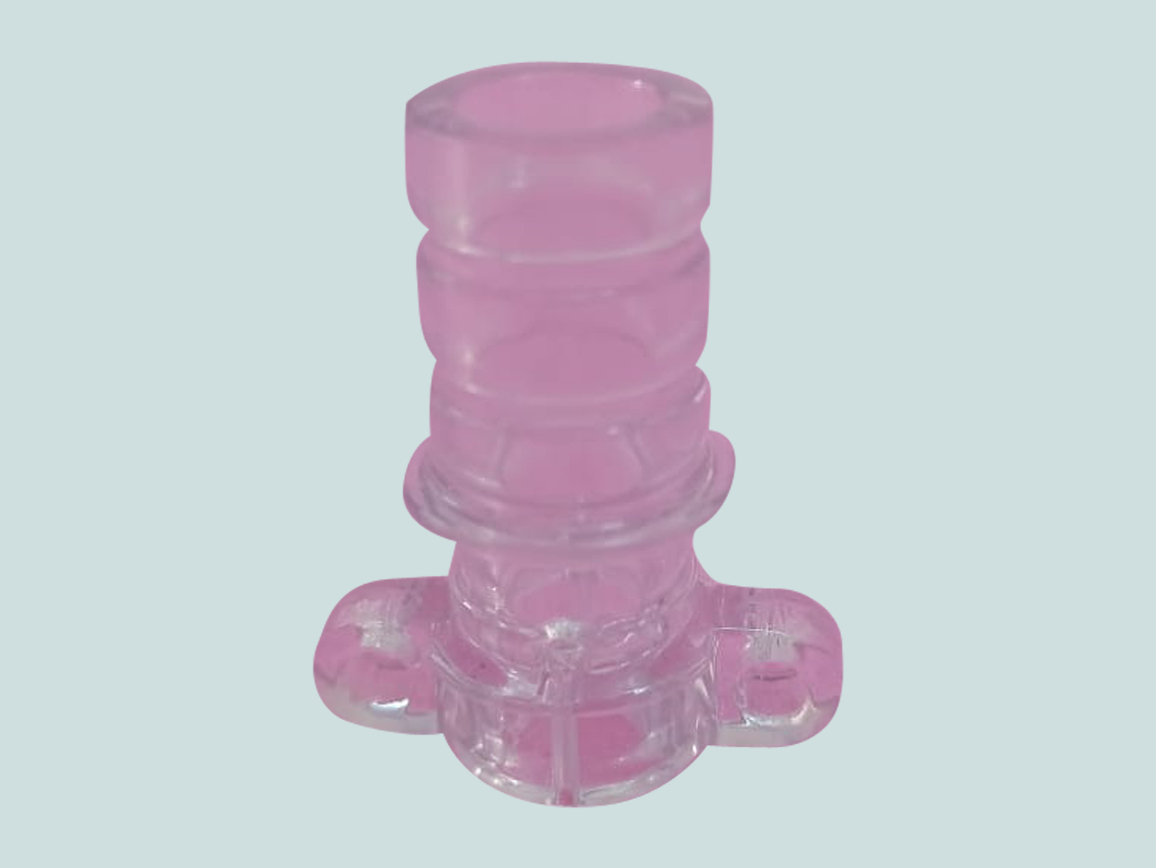

Plastic part rapid prototyping (SLA, SLS, FDM, etc.).
Quick-turn sheet metal fabrication.
Assembly & integration.
Prototype machined parts (CNC machining from solid models).
Metal castings and 3D printed metal parts.
Soft tooling molded plastic parts.
Additive Manufacturing Products

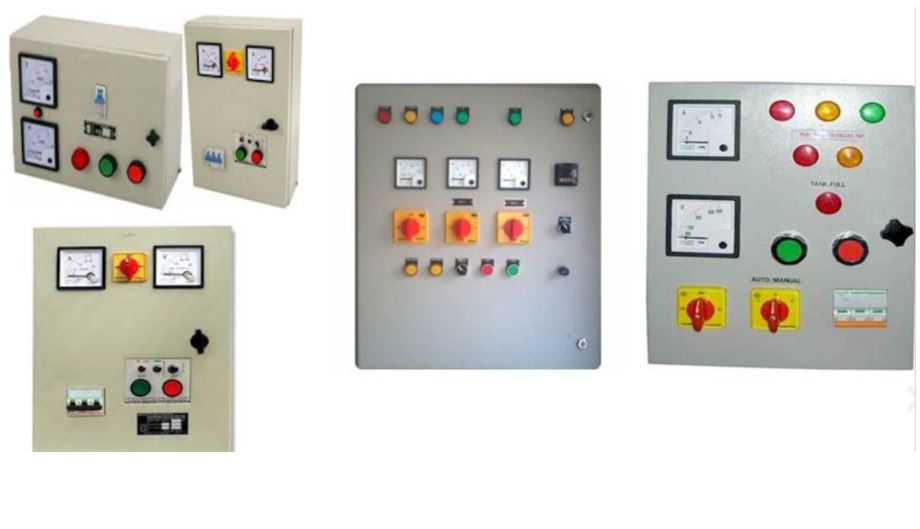

Control Panels Customized controls ........................................
CONTRACT MANUFACTURING & SUPPLY OF ELECTRICAL PANELS
PLC panels
VFD panels
APFC Panels
LV bus ducts
Instrumentation panels
AMF panels for Genset applications
Motor Control Centres (MCC Panels)
Synchronizing panels for Genset application
CE certified panels for the above (on specific request)
Power Control Centres (PCC Panels / Distribution Boards)

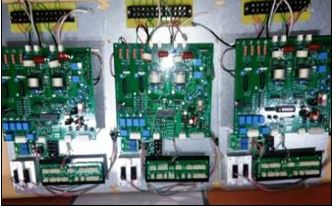

Electronic Engineering Service ........................................
CONTRACT MANUFACTURING & SUPPLY IN ELECTRONICS
DTPL’s in-house team in association with trusted vendors makes wide range of product prototypes through various stages
VME,PCMCIA,LVDS
Design with All Type of Processors
DDR,DDR2,DDR3,SDRAM, FLASH,QDR
FPGA, 3G &4G Designs Mobile Application
PCB design, Signal Integrity and Thermal Analysis
Rigid PCB Design, Flex PCB Design, Rigid Flex Rigid Designs
High speed multilayer PCB, Flex PCB, MIL Grade PCB, Healthcare PCB, Power Supply PCB
RF and Antenna Designs
Bluetooth, GPS, GPRS
PCIe, PCIX, CPCI,PHY
Micro Via Designs
USB,UART,I2C
HDMI,DVI,VGA
Cable Harness ..................................................................

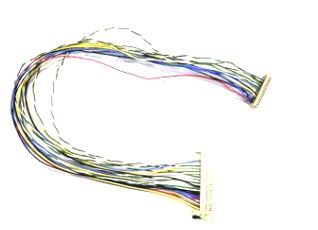

CONTRACT MANUFACTURING & SUPPLY OF CABLE HARNESS
Network Cable
Wire Harnesses
Coaxial Cable Assemblies
Cable Assemblies
Electro-Mechanical Assemblies
Custom- Jacketed Molded Cable Assemblies
